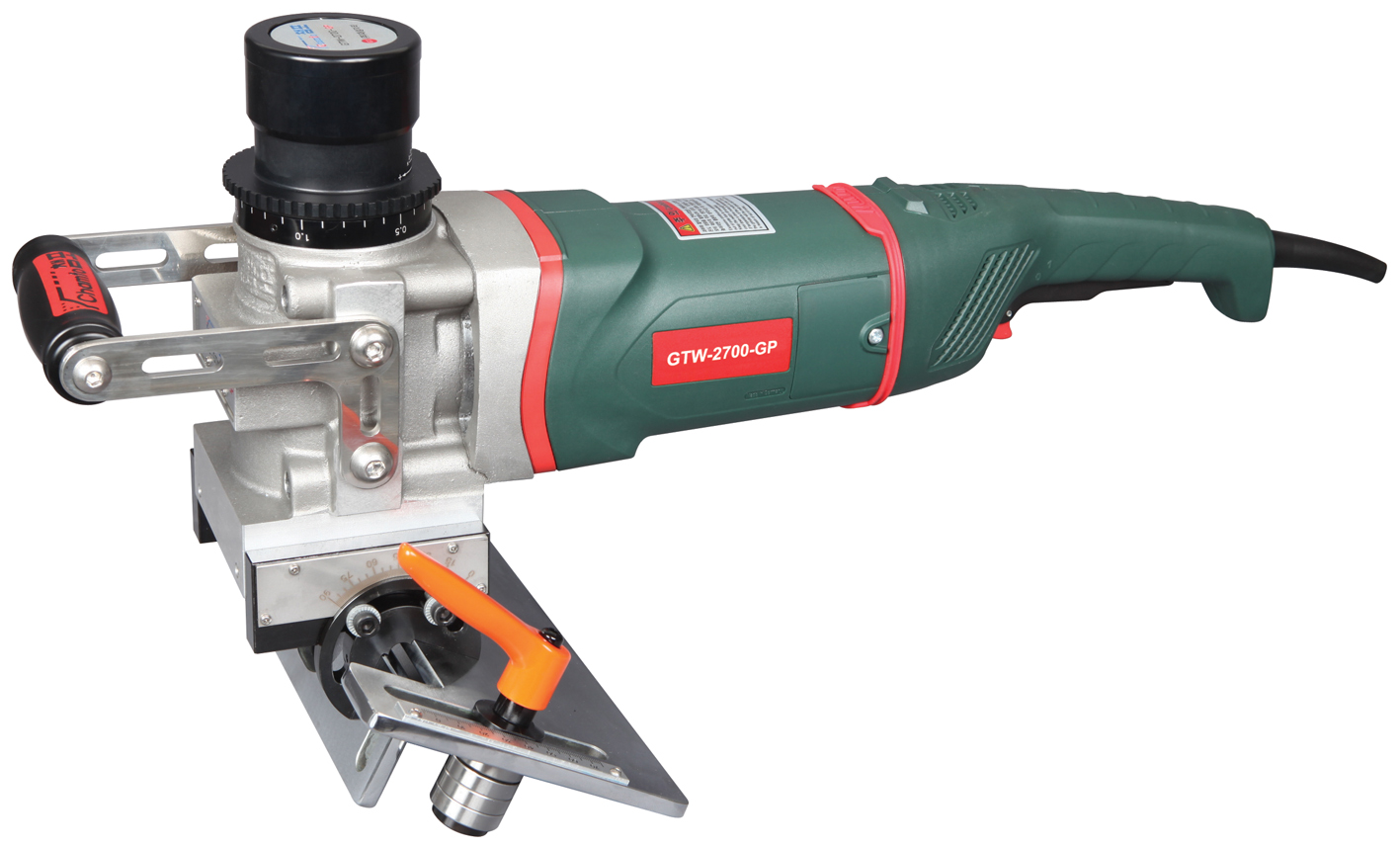

BEVELLER FOR WELD PREPARATION

GTW-2700GP

Adjustment Increments	Minimum 0.1 mm step
Usages	Beveling for weld preparation (Plates& Pipes & Circular plate)
Maximum bevel range per angle	0° ~ 90°
	Deg.	Thickness (inch)	Width (inch)
	0 °	35 mm (1.377)	14 mm (0.551)
	15 °	33 mm (1.299)	34 mm (1.339)
	30 °	28 mm (1.102)	32 mm (1.260)
	45 °	19 mm (0.748)	27 mm (1.063)
	75 °	3.6 mm (0.142)	14 mm (0.551)
	90 °	14 mm (0.551)	15 mm (0.591)
Applicable circular plate	min. 350 or bigger
Pipe	300A (12') ~ 600A (24")
Weight	13.7kg
Power	2600W
Inserts	4 (3)EA
	CFWB140350
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials
