Height Adjustment	One-touch Spline Controller
Adjustment Increments	Minimum 0.1 mm step

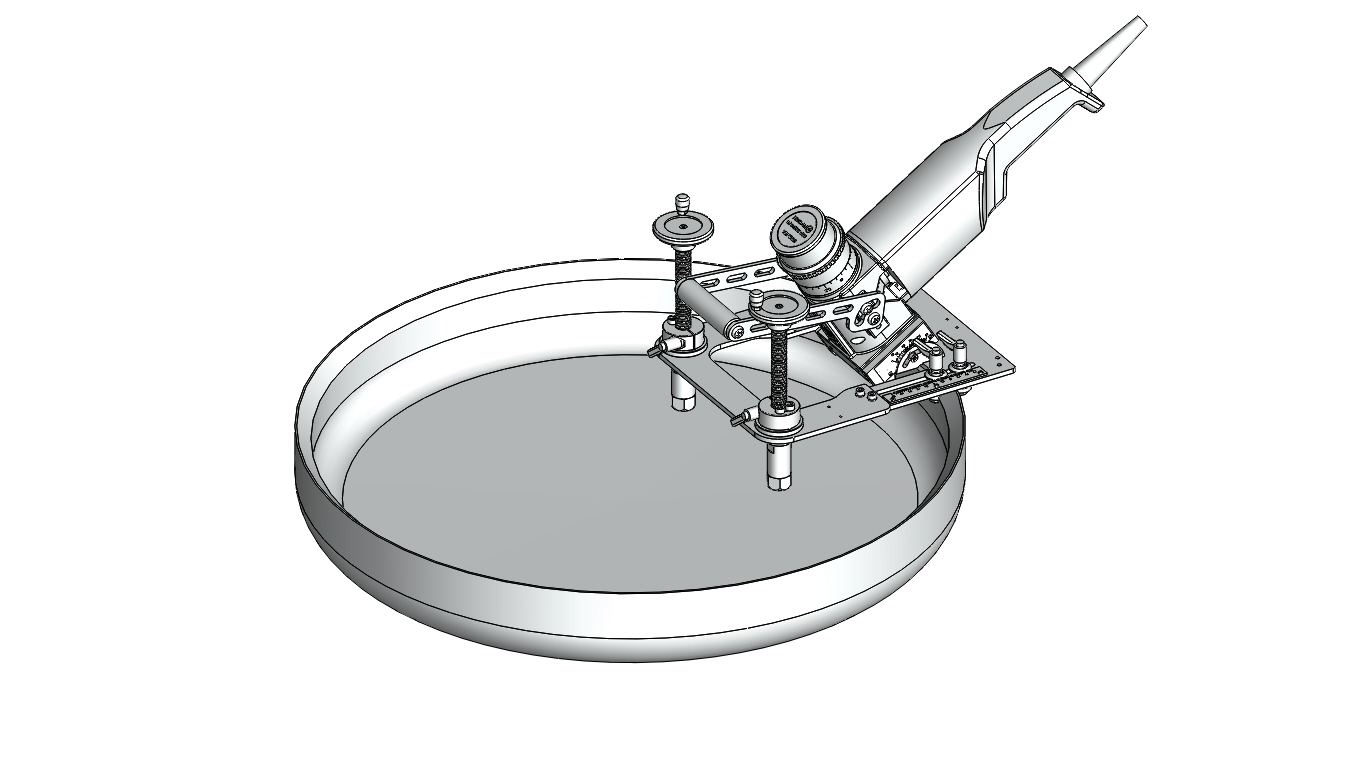

Usages	Weld preparation for dished head of pressure vessle (I/D, O/D)
Maximum Bevel range per angle	30 ° ~ 90 °
	Deg.	Thickness (inch)	Width (inch)
	30 °	23 mm (0.905)	26.5 mm (1.043)
	45 °	15 mm (0.591)	22 mm (0.866)
	75 °	3.2 mm (0.126)	12.5 mm (0.492)
	90 °	11.5 mm (0.453)	12.5 mm (0.492)
Diameter	min.500A or bigger
Pressure vessle Depth	min. 70mm ~ max. 450mm
Weight	10.5kg
Power	1700W (or 1400W)
Inserts	3EA
	CFWB110350
Applications	Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials
