BEVELLER FOR WELD PREPARATION

GTF-2100

Height Adjustment	One-touch Spline Controller
Adjustment Increments	Minimum 0.1mm step
Usage	Beveling for wled preparation of hole and curve in plate
Maximun bevel range per angle	L type(0° - 15° - 30°)		S type(30° - 45° - 60°)
	Deg.	Thickness	Deg.	Thickness
	0°(90°)	14mm	15°	13.7mm
	15°	13.5mm	35°	12.2mm
	30°	12mm	45°	10mm
Pipes size	min. 85mm (I/D), min. 100mm (O/D) or bigger
Adjustment range	Width: -10mm ~+20mm, Depth 14mm
Weight	7.9 Kg
Power	1700W (1400W)

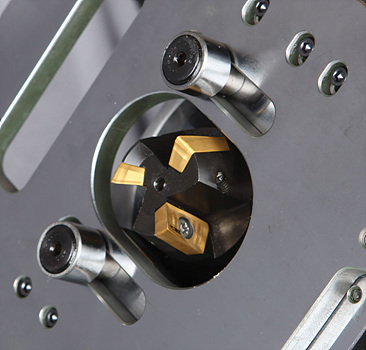

Inserts	3EA
	APMT-1604PDSR-MM
Applications	Steel (carbon steel, stainless steel), Non-ferrous metal, other materials
