      GTW-1500WMT, Portable Beveling machine for Pipe and Plate






1. O/D bevel (O/D 43mm)

2. O/D bevel(O/D 406mm)

3. Plate bevel (500mm*8T)






Portable Beveling machine for Pipe and plate for weld preparation

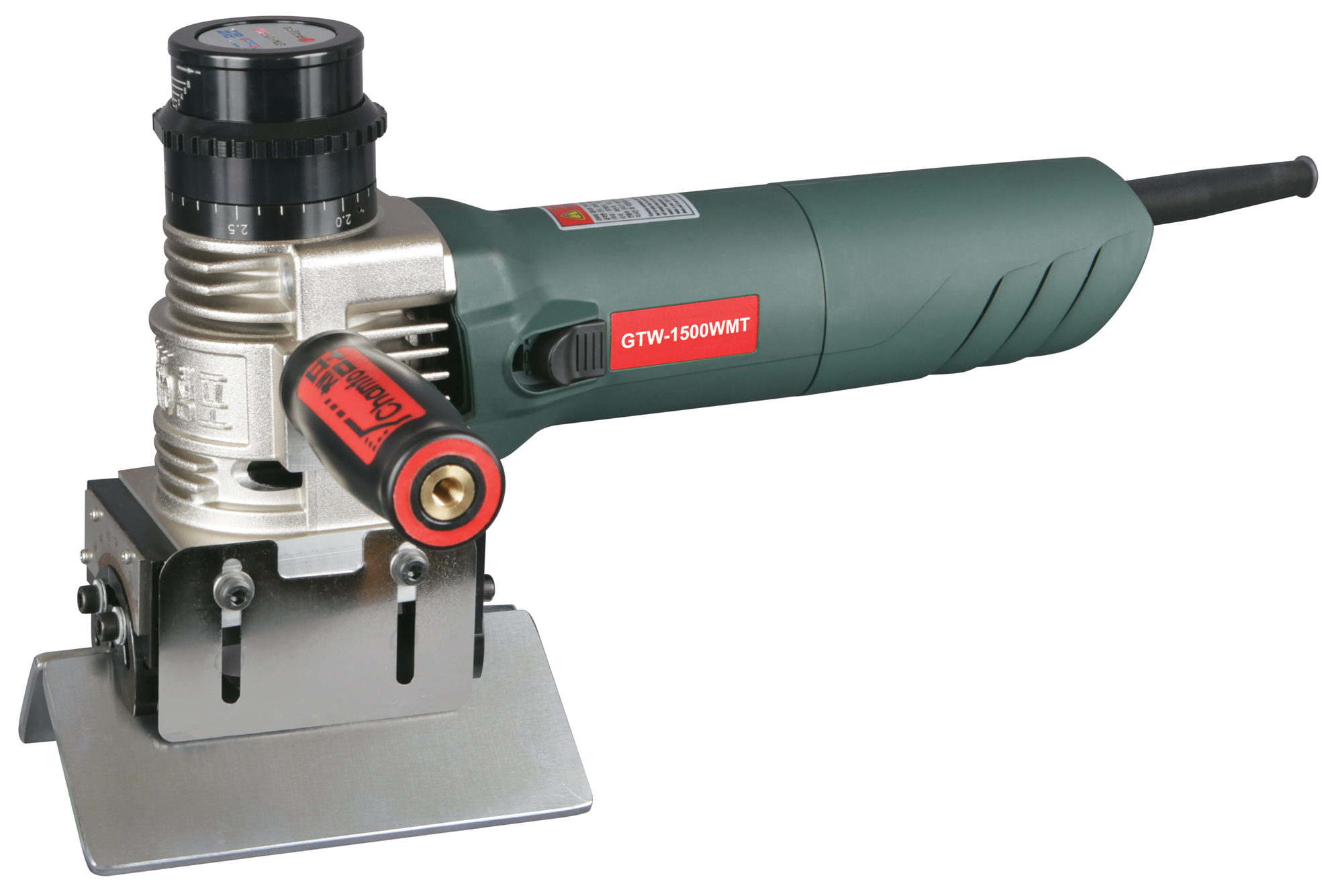

GTW-1500WMT



- Plate work : min. 3mm or bigger ( order production : 3mm or less ).

- Pipe O/D Bevelling (min. 40A (48.5mm) or bigger) and Plate beveling.

- Wide Angle Adjustment from 0 to 90 without any other additional parts.

- Maximum Beveling Amount up to 15 mm (thickness) at 30 / 10 mm (thickness) at 45.

- Patented One-touch Controller :

Adjustment depth min. 0.1mm / Prevent in advance to be changed beveling amount due to vibration while operation / Only takes one second to adjust beveling amount and lock it.



- Spindle moving system: the first in the world! Minimize weight with self-developed technology (the best cutting efficiency and the lightest within the same specification of beveling machine).



- Optimized Face-mill Cutter :

Easy to use, Quick work and Excellent cost savings, than existing Beveller (Peripheral milling type) or Grinder.

Excellent working efficiency in the case of cutting steel, stainless steel(STS/SUS) and high yield structural steel(ATOS80) etc., due to reduces the contacted cross-sectional area of about 80% compared to Peripheral milling type of Beveller.



- Clean surface finish








--Click the below "VIDEO" to watch the video--

[MANUAL VIDEO]           *DEMO MACHINE, GTW-1500WMT

 CLAMP WORK-PIECE /  ANGLE ADJUSTMENT /  ZERO POSITION SETTING /  PIPE SCALE SETTING

BEVELLER FOR WELD PREPARATION

GTW-1500WMT PIPE AND PLATE

Height Adjustment

One-touch Spline Controller

Adjustment Increments

Minimum 0.1 mm step

Usages

Plate & Pipe's beveling for weld preparation

Maximum Bevel range per angle

0 ~ 90

Deg.

Thickness (inch)

Width (inch)

0

22 mm (0.866)

7.5 mm (0.295)

15

22.5 mm (0.886)

23.5 mm (0.925)

30

15 mm (0.591)

17 mm (0.669)

45

10 mm (0.394)

15 mm (0.591)

75

2.8 mm (0.110)

11 mm (0.433)

90

7.5 mm (0.295)

11 mm (0.433)

Pipe Size

min. 40A (48.6 mm or 1 1/2") or bigger

Weight

5.2kg

Power

1080W

Inserts

3EA

CFWB110350 / CFWB110149

Applications

Steel (carbon & stainless steel, etc.), Non-ferrous metal, other materials

#Beveller #Weld preparation #One-touch adjustment #Face-mill #0.1mm #Doesnt loosed while operating (auto lock) #Plate #Pipe # #Beveler
