      Wet Chamfo Core-Drill machine GCDM-17CH (3inch ~ 10inch)






Over head core drilling, 5 inch ( 76.2mm )

Wall Core drilling , 10 inch ( 254.mm )

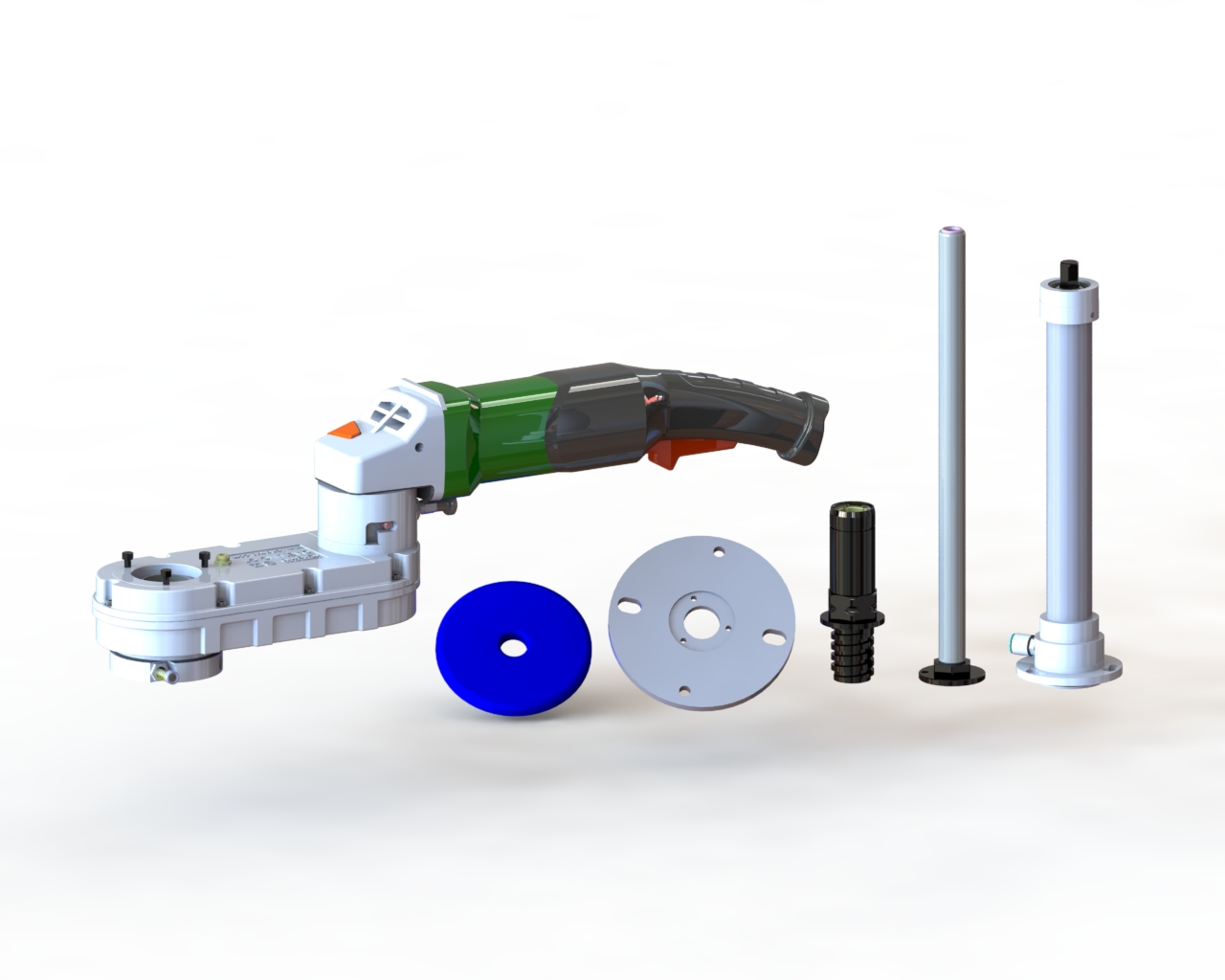

Wet Portable Chamfo Core-Drill machine

GCDM-17CH



- Light, Assembly type can makes easy and fast work on concrete wall construction,
   because of Individual weights less than about 3kg, excluding core-bits.
- Fast and easy installation and operation in a side of wall / diagonal / narrow spaces.
- Gear type of strong power reducer to cut the reinforced concrete.
- Excellent Compatibility, to use standard core-bit.
- 76.2mm (3'') ~ 254mm (10'') Using a wide range of core-bit.
- Metabo 1750W Motor from Germany.
   S-automatic mechanical safety clutch
   Powerful and twice life time of the marathon motor
   6 step speed control


  Common

Model

GCDM-17CH

Capacity

3'' (76.2mm) ~ 10'' (254mm) Core- drilling

Voltage

220V~240V 50~60Hz, Single phase

Power

1750W

Total weight

10.3kg (excluding Core-bit)

Application

Core drilling of concrete structures on walls, sides,
and floors in small and large spaces

 Specification

No.

Model

Reducer
Type

Metabo Motor

No-Load RPM
(approx.)

Core-bit size

1

GCDM-17CH-560

560

WEV 17-125
Quick RT

184 ~ 725

76.2mm (3'')
~  254mm (10'')
