      GCDM-26L, Chamfo Core Drill Machine






Chamfo Core drill channel

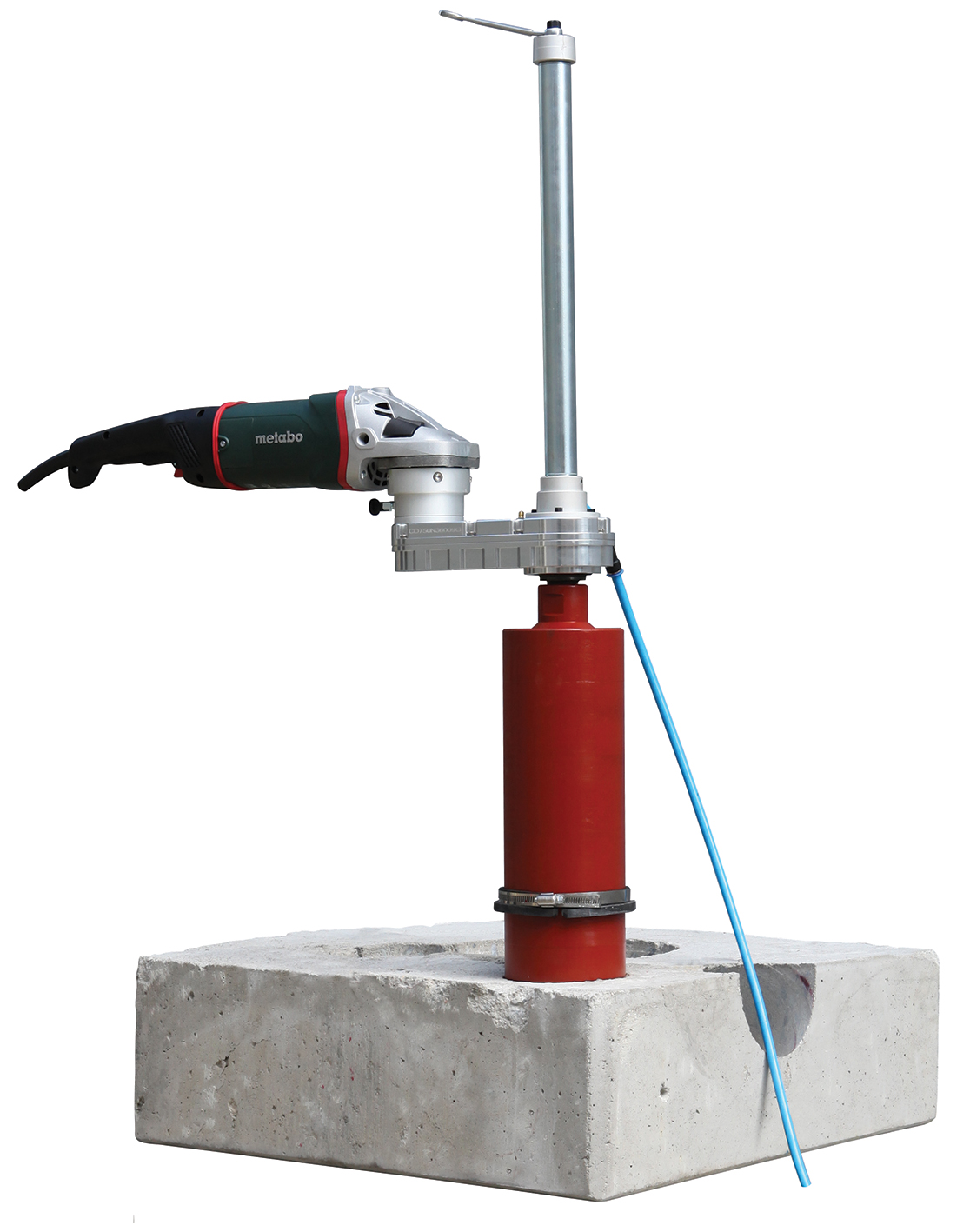

Chamfo Core Drill Machine

GCDM-26L

-Description-

3"~14" Core Drill work on a hume pipe / side / diagonal / narrow spaces.

1. Light, Assembly type

-  (Excluding Core bits) Individual weights are less than about 5kg,
    It is easy to install and operate it in a side / diagonal / narrow spaces.

2. Strong, Gear Type Reducer

-  Strong power to cut the reinforced concrete

3. Excellent Compatibility

-  Standard Core Bit can be used.

Model

GCDM-26H

Usage

3¡±~14¡± Core Drill Work

Voltage

Single-Phase Current, 220V~240V 50~60Hz

Power

2600W

Weight

14kg (without Core Bit)

Usage

Core Drill Work on floors, walls in wide Space, narrow Space

Or Concrete Home Pipework.

No.

Model

Reducer type

Grinder

No-load RPM(appox.)

Core bit size (max.)

1

GCDM-26L-560-9

2) 560 Type

W 26-230

440

3"~14" (14¡±)

2

GCDM-26L-560-7

W 26-180

560

3"~12" (12¡±)

3

GCDM-26L-740-9

3) 740 Type

W 26-230

570

3"~12" (12¡±)

4

GCDM-26L-740-7

W 26-180

740

3"~10" (10¡±)
