Portable Beveling machine for Plate for weld preparation

GTW-700W

- Minimum thickness : 1mm or bigger

- Wide Angle Adjustment from 15° to 75° without any other additional parts.

- Maximum Beveling Amount up to 3.5 mm (thickness) at 45°.

- Patented One-touch Controller :

Adjustment depth min. 0.1mm / Prevent in advance to be changed beveling amount due to vibration while operation / Only takes one second to adjust beveling amount and lock it.

- Spindle moving system: the first in the world! Minimize weight with self-developed technology (the best cutting efficiency and the lightest within the same specification of beveling machine).

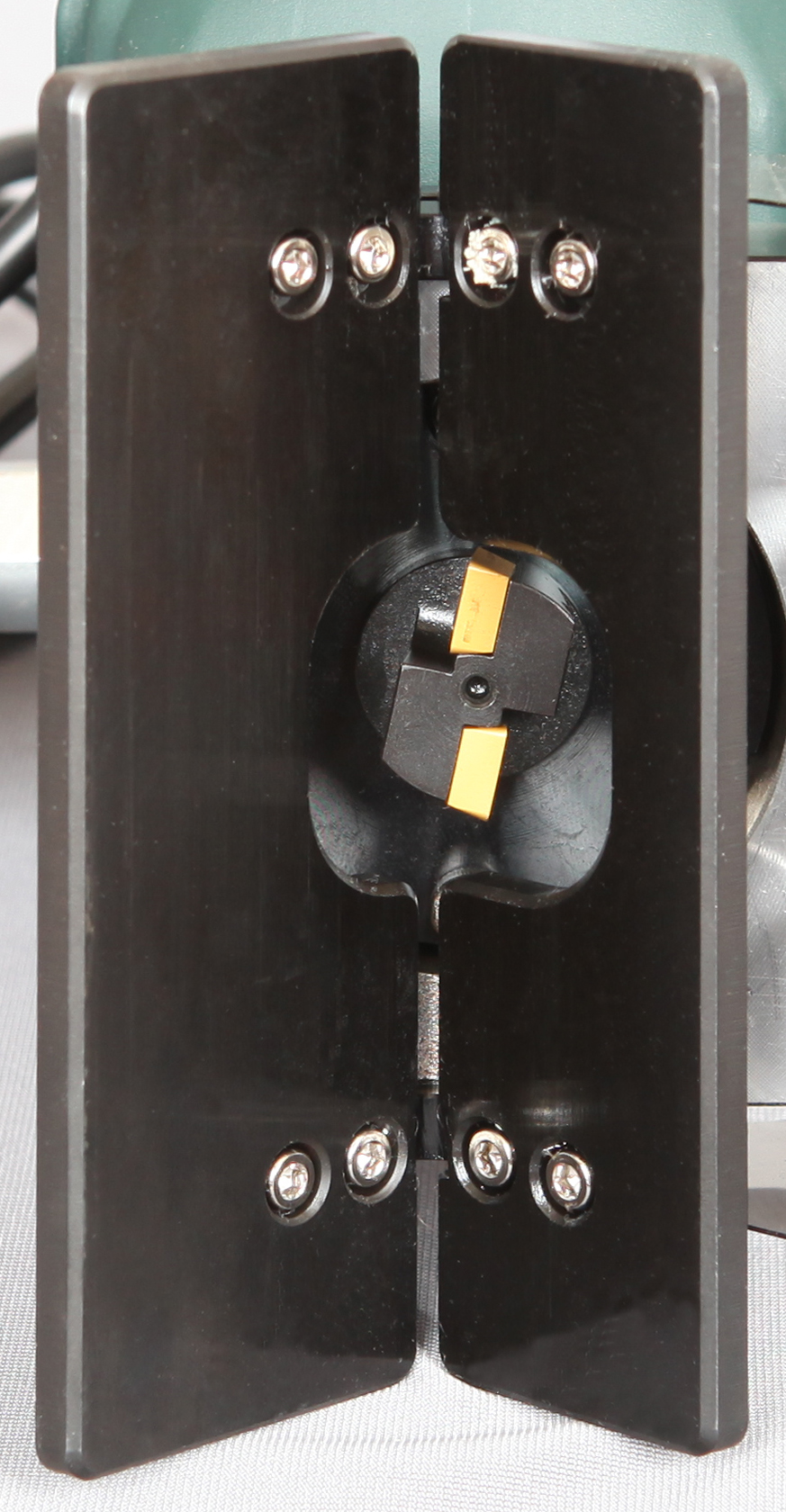

- Optimized Face-mill Cutter :

Easy to use, Quick work and Excellent cost savings, than existing Beveller (Peripheral milling type) or Grinder.

Excellent working efficiency in the case of cutting steel, stainless steel(STS/SUS) and high yield structural steel(ATOS80) etc., due to reduces the contacted cross-sectional area of about 80% compared to Peripheral milling type of Beveller.

- Clean surface finish
