      TGTP-3LTP, [Table type] Coating[Plating] removal and beveller






50A, Elbow, I/D, coating removing

50A, Elbow, O/D, coating removing

50A, Tee, O/D, coating removing

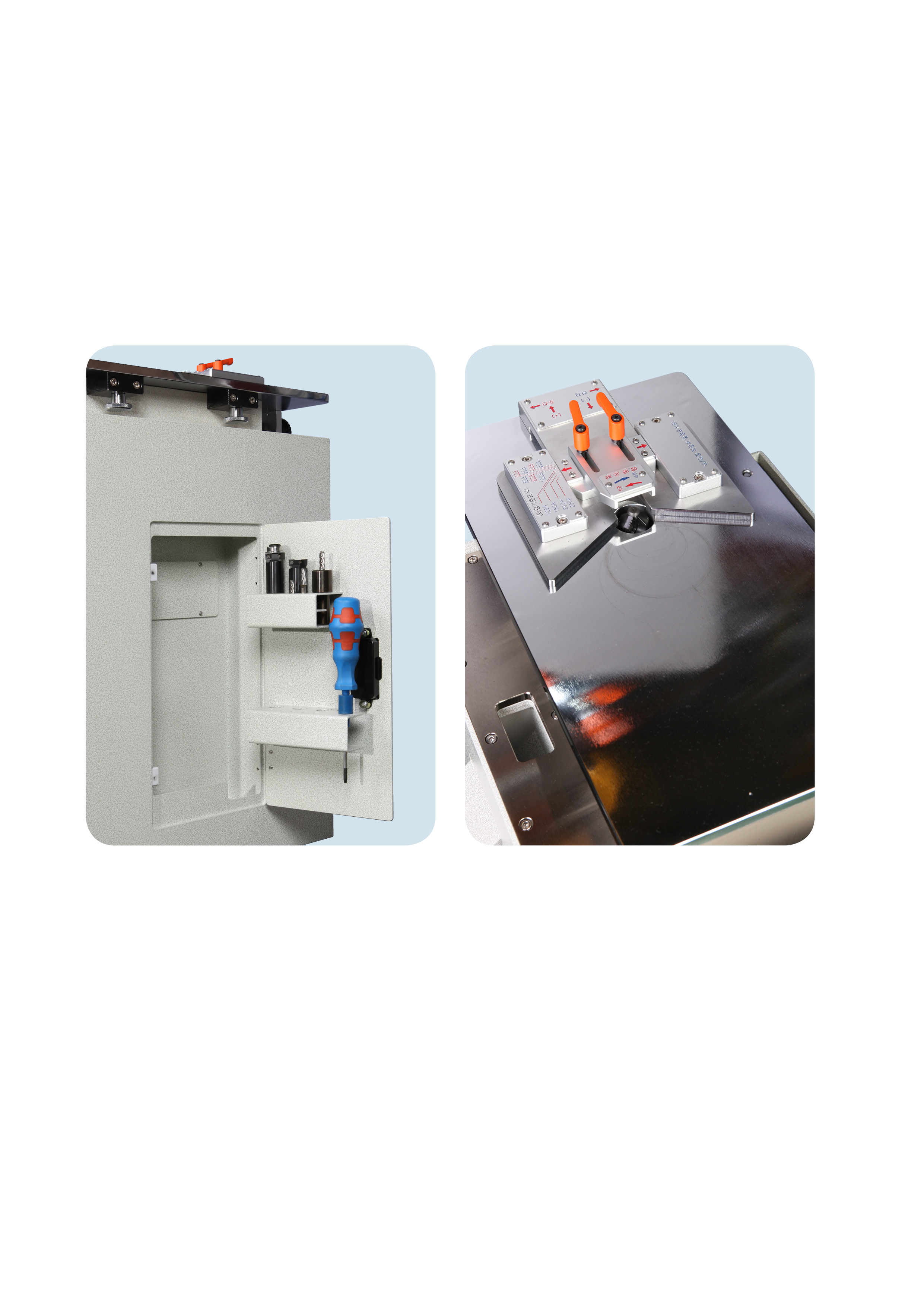

Coating[Plating] removal and beveller [Table type]

(Pipe / Elbow / Tee _ I/D_O/D)

TGTP-3LTP


-  32A (42.7mm / 1 1/4") ~ 250A (267.3mm / 10") I/D. O/D Coating(Plating) removing and beveling
-  Amount : Width - 0~15mm  Depth : 0.075mm~3mm

- Patented One-tounch Controller :
Adjustment depth min. 0.1mm / Prevent in advance to be changed beveling amount due to vibration while operation / Only takes one second to adjust beveling amount and lock it.



- Spindle moving system: the first in the world! Minimize weight with self-developed technology (the best cutting efficiency and the lightest within the same specification of beveling machine).



- Optimized cutting method:

Better quality, faster working than grinder, excellent cost savings!



- Clean surface finish




Capacity

O/D 0¡Æ / 30¡Æ / 37.5¡Æ / 45¡Æ I/D

Adjustment

Patened One-touch spline

Adjustment Increments

min. 0.05mm

Machining Range

Width: 0~15mm / Depth: 0.075mm ~ 3mm

Piping parts Size

32A(42.7mm / 1 1/4") ~ 250A(267.3mm / 10")

Inserts PN

CF100iC / CFWB080149 / A/L SC1)

Power

AC 220V 60Hz / 1.5Kw / 8.7A

Weight

120kg
