      GT-38 series [Incl.video]

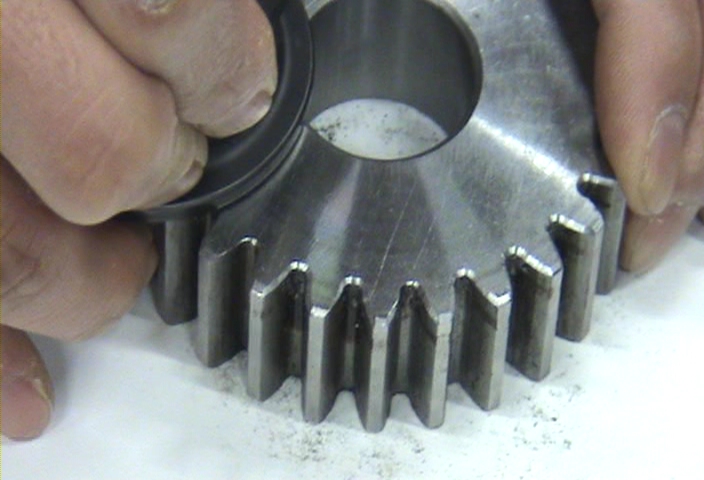

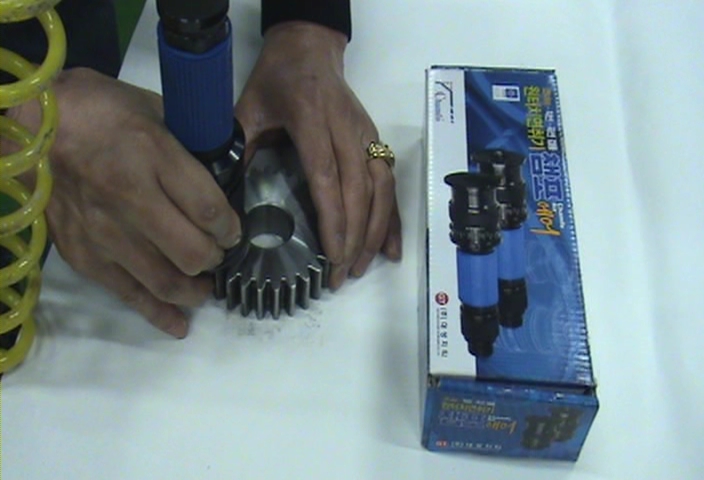

1. Gear bevel

2. Cooper bevel






Pneumatic C/R Chamfering machine

GT-SERIES



Models

GT-38S

GT-38SC

GT-38R

GT-38SR

GT-38SCR

Bevel Type

Chamfer (45°)

0 ~ 1.5C

0 ~ 1.5C

0 ~ 1.5C

0 ~ 1.5C

0 ~ 1.5C

Fillet (Radius)

 -

 -

1R, 1.5R

2R(for AL)

1R, 1.5R

2R(for AL)

1R, 1.5R

2R(for AL)

Min.thickness

GT-38S

3mm (0.5C) / 3.5mm (1C) / 4mm (1.5C)

GT-38R

4mm (1R) / 4.5mm (1.5R) / 5mm (2R)

Corner(with Rotary bar)

 -

Acute / right angle chamfering

 -

 -

Acute / right angle chamfering

Bevel Adjustment

One-touch Spline Controller

Adjustment Increments

Minimum 0.1mm step

Inserts

Chamfer (45°) (2 ea)

DCMT070204

DCMT070204



DCMT070204

DCMT070204

Fillet





CF38iR1

CF38iR1

CF38iR1

 (Radius)

CF38iR1.5

CF38iR1.5

CF38iR1.5

 (2 ea)

CF38iR2

CF38iR2

CF38iR2

Corner



SK-1M-GT





SK-1M-GT

(Rotary burr

1 ea)

Compressed air pressure / consumption rate

6kg/cm3   /   0.3m3/min

Weight

1.2 kg

Straight Line (plate)

O

O

O

O

O

Flat Shape

O

O

O

O

O

Hole

O

O

O

O

O

Inner corner of accute angle (min. 30°)

 -

O

 -

 -

O

Radius

 -

 -

O

O

O

#Pnuematic chamfering #Pnuematic beveller # Radiuce chamfering #Roudious Chamfering

Physical Specs.

+ Bolt size of air injection hole : PT 1/4 inch
+ Air injection hose : 8 mm diameter
+ Air Pressure : 6 kg/cm2
+ Diameter of base plate : 54 mm
+ no load RPM : 25,000
+ Collet : 6 mm
+ Length : 201 mm
+ Weight : 1.2 kg




User friendly an one-touch beveling adjustment controller
Beveling adjustment is carried out by two simple and easy steps - pull or push then turn. Each division equally marked on the controller represents 0.1mm so even a beginner can perform precise beveling works.
Never loosen bevel depth adjusted by spline structure.
